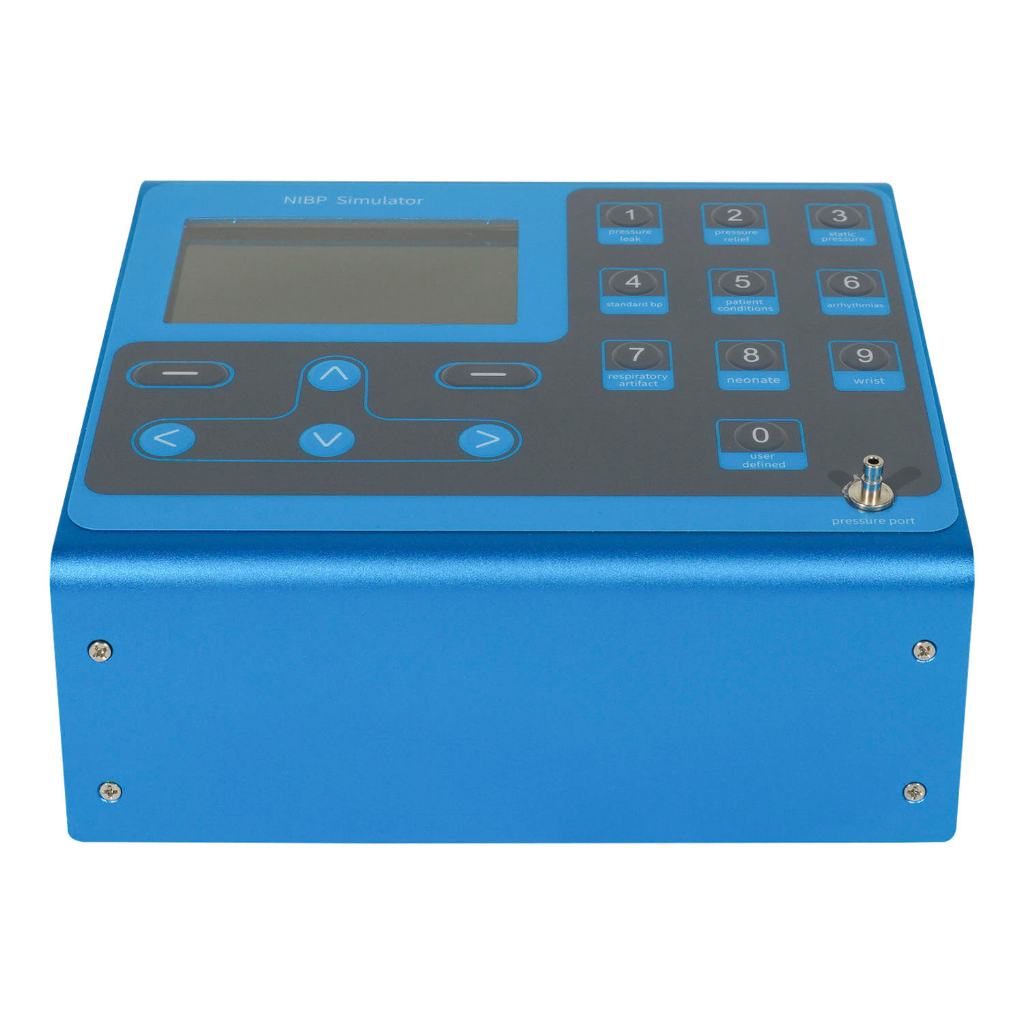

CONTEC MS200 Test Instrument NIBP Simulator Patient Simulator

It is a multi-purpose test device for testing NIBP Monitor adopted Oscillometry. Concise and elegant in appearance, easy and conve nient to operate, and it can generate the pressure up to 400mmHg (53.3 kPa) by the built-in air pump. With the functions of dynamic BP sim-ulation under several conditions, static pressure calibration, automatic leak test and over-pressure relief test, which can quickly and accu rately analyze each performance of NIBP Monitor. Functions Provide test functions of pressure gauge, pressure leak and over-pressure relief. Provide pressure source for pressure leak and over-pressure relief test by the built-in air pump. Dynamic BP simulation (including arm and wrist BP). Provide several BP simulations (adult, neonate, 8 kind of patient conditions, user-defined). Provide BP simulations under arrhythmia and respiratory inter-ference. Built-in air chamber, which is used to simulate adult and neona- tal cuff. Adopt 4.3" 65 K color LCD display. Accessories One User Manual Two fuses One power cord Physical characteristic Power supply: AC100-240V 50/60 Hz, Environment temperature: +5°C+40°C Relative humidity: Performance BP simulation range: Systolic pressure: 2.7 kPa (20 mmHg)-40.0 kPa (300 mmHg) Diastolic pressure: 1.3kPa (10 mmHg) -33.3 kPa (250mmHg) Pulse volume: 0.1 cc-2.4 cc HR range: 30 bpm-250 bpm; pulse volume > 2.00 cc, maximum HR: 200 bpm HR accuracy: ± 1 bpm (except patient condition, arrhythmia and respiratory disturbance) Under patient condition: Weak pulse, tachycardia, obese, geriatric: ± (preset value 1%+1) bpm Moderate exercise: (preset value 1.5%+1) bpm Strenuous exercise: (preset value 3%+1) bpm Pressure measurement: Range: 0kPa (0 mmHg)-53.3 kPa (400 mmHg) Resolution: 0.1 kPa, 1 mmHg, 1 cmH2O, 1 inH2O, 0.1 psi Accuracy: 0 kPa (0 mmHg)-40.0 kPa (300 mmHg), ± (0.5% of reading + 0.1) kPa or± (0.5% of reading +1) mmHg 40.1 kPa (301 mmHg)-53.3 kPa (400mmHg), ± 2% of reading Pressure source: Output range: 6.7 kPa (50 mmHg) 53.3 kPa(400 mmHg) Resolution: 0.1 kPa, 1 mmHg, 1 cmH2O, 1 inH2O, 0,1 psi Deviation between target pressure and actual pressure: ± 1.3 kPa (±10 mmHg) in range of 13.3 kPa (100 mmHg)-53.3 kPa (400 mmHg) with a minimum volume of 300 cc Airtightness Total airtightness: <0.3 kPa/min (2.25 mmHg/min) under "OFF" state Airtightness of built-in cuff: 0.27 kPa/min (2 mmHg/min)
